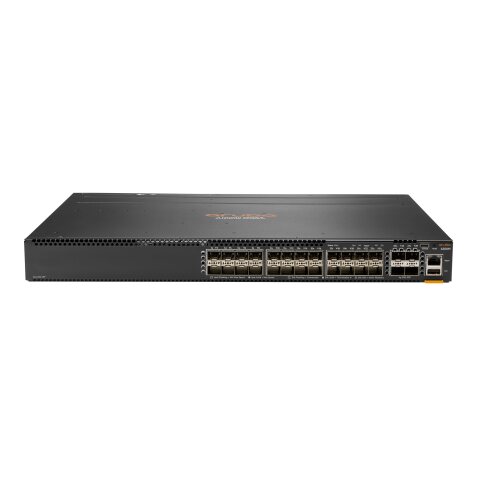

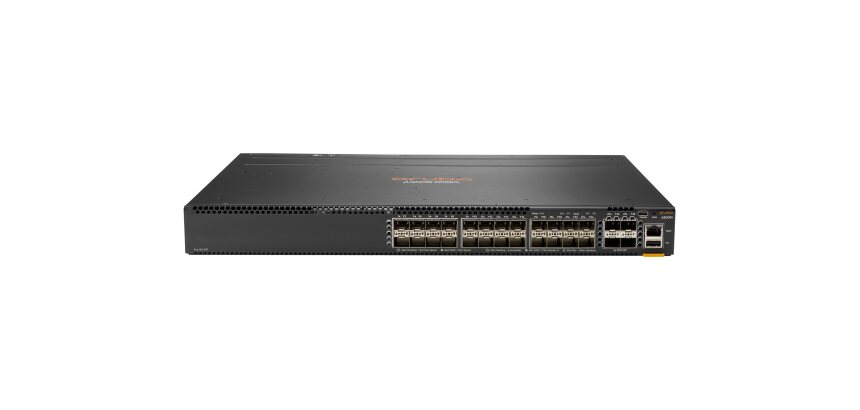

HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch
HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch

HPE Aruba Networking Networking CX6300M 24-port SFP+ and 4-port SFP56 Switch

Réf. 813-7931

‌
Hpe
  • Commutateurs Couche 3 empilables avec BGP, EVPN, VXLAN, VRF et OSPF dotés d'une sécurité et d'une QdS robustes
  • Capacité de commutation système 880 Gbit/s hautes performances, 660 MPPS de débit système et jusqu'à 200 Gbit/s de bande passante d'empilement
  • Commutateurs 1U compacts avec modèles HPE Smart Rate (1/2,5/5 GbE) multi-gigabit, PoE 60 W et SFP+ à pleine densité
  • Liaisons montantes 10GbE/25GbE/50GbE intégrées haut débit
  • Surveillance intelligente, visibilité et correction avec le moteur d’analyse réseau Aruba

Description et caractéristiques

The HPE Networking CX6300 Switch Series is a modern, flexible, and intelligent family of stackable switches ideal for access, aggregation, and data center top-of-rack (ToR). It features a cloud-native design and fully programmable operating system (OS). The CX6300 delivers advanced monitoring and troubleshooting with capabilities such as a real-time Network Analytics Engine, HPE Networking Switch Multi-Edit Software and flexible deployment options to implement and validate network configurations. A powerful Gen7 ASIC architecture delivers fast, non-blocking performance for AI, Wi-Fi 7, and Internet of Things (IoT) requirements. Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. The new CX6300M switches deliver 90W Class 8 PoE (up to 4320W of PoE budget), enhanced uplink capabilities up to 50G, MACsec/PTP/AVB support, and improved support for high-power enterprise and Wi-Fi 7 deployment.

Point de prise en charge des nouveautés:
Powerful 7th Gen ASIC architecture provides the CX6300 series with 880 to 1760 Gbps system switching capacity, 660 to 1310 Mpps of system throughput and up to 200 to 400 Gbps stacking bandwidth
24 to 48 HPE Smart Rate multi-gigabit ports (1/2.5/5/10GbE) and 1 GbE fiber, supporting up to 90W 802.3bt PoE. New 24/48 port CX6300M models provide 90W power simultaneously for up to 48 ports.
Management, insights, and actions via HPE Aruba Networking Central or HPE Mist. Dynamic segmentation enables enhanced security and simple access for users and IoT
HPE Networking CX6300 Series delivers stackable Layer 3 switching with BGP, EVPN, VXLAN, VRF, OSPF routing, robust QoS, MACsec 256, PTP, AVB and LRM; these features are not supported on CX6300L
Three stackable Layer 2-only CX6300L switches with HPE Smart Rate multi-gigabit and MACsec 256 encryption are available for high-performance access deployments
High-availability with choice between 2 to 10-member Virtual Switching Framework (VSF) stacking for scale, or 2-member Virtual Switching Extension (VSX) cluster for active-active redundancy
Power Over Ethernet (PoE)Non
CouleurNoir
Référence fabricantJL658A
Éligible loi AGECNon
